Magna Medical Centre (Rackheath)

Project Overview

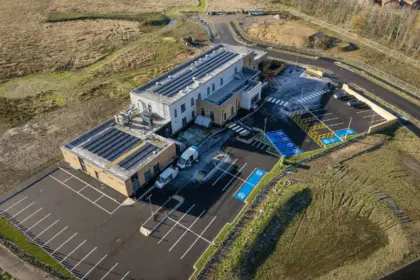

The Rackheath Medical Centre, newly named the Magna Medical Centre, is a modern primary care facility designed to meet the needs of a rapidly growing community. Developed with an £11 million investment in partnership with NHS Property Services and NHS Norfolk & Waveney, it will serve up to approximately 10,000 patients each year.

EvaBuild were engaged to deliver a comprehensive groundworks package to support the modular construction programme. EvaBuild Surfacing delivered the site’s external tarmac surfacing. This included a large tarmac car park, installing road kerbs, forming pedestrian pathways, and completing all line marking such as zebra crossings, disabled bays, EV bays and the associated EV-charging areas.

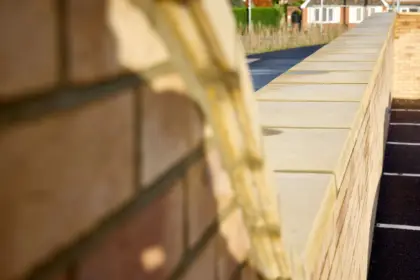

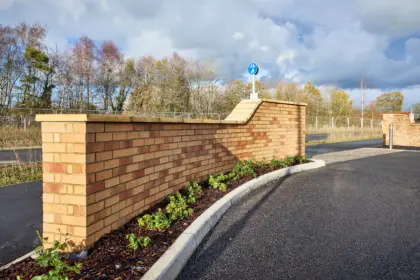

These works formed a key part of the project’s operational functionality, ensuring safe access, efficient traffic flow and future-proofed parking facilities for staff, patients and visitors. In addition to all groundworks, EvaBuild also provided a brickworks package.

Scope of Works

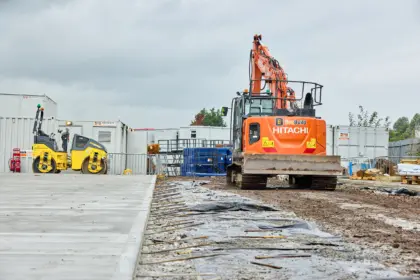

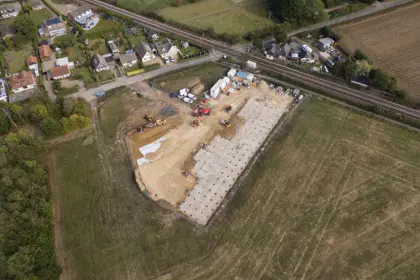

Enabling Works and Ground Preparation:

• Site investigations and enabling works
• Construction of a temporary haul road during early construction
• Reduce-dig to building footprint

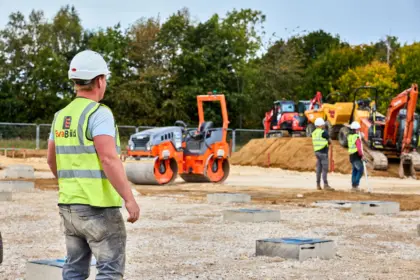

Foundations and Structural Base:

• Pad foundations and lift pad foundations
• Strip foundations
• Brickwork skin up to 300 mm above internal finished floor level (FFL)
• Installation of brick lintels and ventilation air bricks

Drainage and Water Management:

• Surface-water drainage
• Construction of rain gardens
• Foul-drainage installation

Services and Utilities:

• Combined services trench for water, electricity, data/alarms and gas

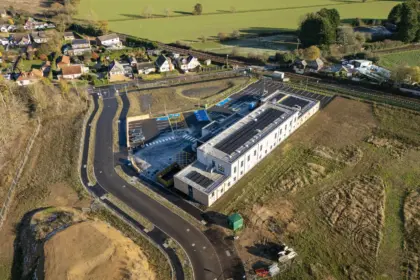

Surfacing

• Installation of a new fully permeable tarmac area measuring approximately 1,837 m²
• Construction of pedestrian tarmac pathways
• Road kerbs and edging
• Line-marking including zebra crossing, disabled bays, EV bays and EV-charging points

Landscaping:

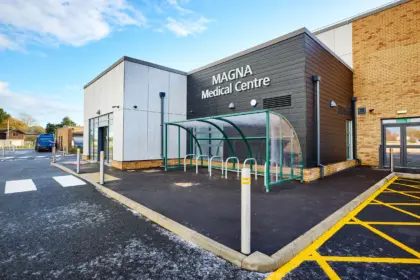

• Installation of a bicycle shelter and bollards
• Installation of wooden benches
• Top-soil and planting of shrubs

Key Achievements and Value Delivered

• Delivered robust enabling and groundwork infrastructure to support efficient modular construction.
• Implemented sustainable drainage features including rain gardens and permeable surfacing.
• Enhanced accessibility with well-designed pedestrian routes, cycle facilities, EV bays and disabled parking.
• Supported the project timeline by ensuring groundworks, foundations and external works were completed to enable seamless progression to modular installation and fit out.
• Provided a durable, high-quality base for the clinical facility’s long-term operational requirements.

This project highlights EvaBuild’s capability to deliver comprehensive groundwork and external-works packages for modern healthcare facilities. By supporting a development intended to serve thousands of patients, the work contributes directly to improved healthcare provision and sustainable community infrastructure.
